Pixel Pitch: 4mm/4.8mm/5.95mm/6.25mm

                        /8.92mm/10.42mm

Module Size: 250*250*(17/18)mm

Cabinet Size: 500*1000*70mm

Cabinet Weight: 14kg

Outdoor Rental LED Screen Product Details

High Quality Power Adapter

IP65 waterproof and Can be to ensure fast, safe and stable.

High Quality Lock

The connection lock is assembled and disassembled quickly and conveniently

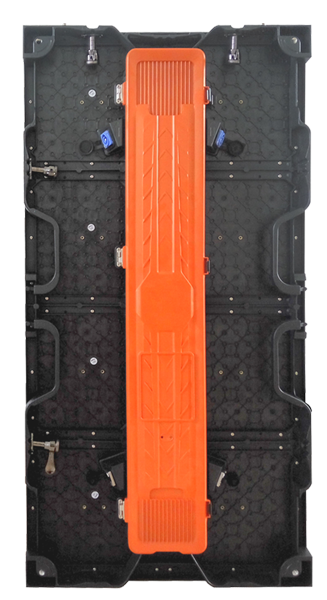

Cast Aluminum Cabinet

Cast aluminum cabinet, the accuracy is less than 1%.

IP65 Waterproof

High quality PVC material, perfect craft.

Light and thin design

LED Display Cabinet size 500*1000mm, weight <14KG, Cast Aluminum material, the thickness of the box is only 68mm, high strength, toughness, high precision, not easy to deformation.

Wide viewing angle

Multiple Installation Methods

Waterproof Grade IP65

Unique mask design, dustproof, waterproof grade IP65

High Refresh No Ghosting

Refresh frequency >2000Hz, with professional IC can reach 2200, a new mask design, contrast up to 3000.

Outdoor Rental LED Screen Product Parameter

PIXEL PITCH43.914.85.956.258.9210.42
PIXEL CONFIGURATIONSMD2121SMD2121SMD2727SMD3535SMD3535SMD3535SMD3535
PANEL RESOLUTION128 x 256128 x 256104 x 20884 x 16880 x 16056 x 11248 x 96
PANEL DIMENSION500 x 1000mm
PANEL AREA0.5 ㎡
PANEL WEIGHT14kg
LED QUANTITY/PANEL6553665536432642822425600125449216
BRIGHTNESS≥6500 nits（adjustable）
BRIGHTNESS ADJUSTMENT256 level
VIEWING ANGLEHorizontal 140 0 ,Vertical 140 0
SHORTEST VIEWING DISTANCE4m4m5m5m6m8m10m
DISPLAY WORK METHOD1/7scan1/7scan1/7scan1/7scan1/10scan1/7scan1/10scan
DRIVE MODEConstant Current
CONTRAST3000:1
GREY SCALE16 bit
REFRESH RATE≥2400 Hz
IP RATINGIP65
TENURE LIFE OF LAMP (50% BRIGHTNESS)10 years
OPERATING TEMPERATURE-20℃ ~ +40℃
OPERATING HUMIDITY0 ~ 95%
INPUT POWERAC110-240V 47/63Hz
